The basic set of hardware and software

A_9878-1.Wireless amplifier unit ABP-2 (base unit)

It has a built-in wireless module "Bluetooth 5.0" (Bluetooth low energy) for communication with a PC and additional wireless units, modules and sensors from the set. The base unit has one Micro-8M input connector for two bipolar or two monopolar EEG leads or two polygraphic sensors/electrodes, as well as for the I2C interface (digital sensors). The unit has a built-in motion sensor and a multifunctional button. On the back of the unit there is a button for connecting a disposable neutral electrode or conductor of an N electrode (A_1150).

Specifications

The set with ABP-2 includes:

A_5125. Charger Cable (Micro 8M)
‍For ABP-2

The charging cable has USB-A and Micro-8M connectors and is used to connect the purchased charger to the ABP-2 base unit and the Poly-2 module (if available).

A_5125. Кабель зарядного устройства (Микро-8М) для блока АБП-2.

A_1150. Neutral wire (with “snap” connector Ø 12 mm and with connector “socket” Ø 12mm)

It can be used in ABP-2 and Poly-2 (if available) units when they are freely placed (not fixed with a disposable ECG electrode) and the connector socket on the module and block housings is connected by a wire with the N electrode conductor button to remove the socket for the N electrode to the required distance and fix the disposable ECG electrode on the skin.

A_1150. Проводник N электрода с коннектором «кнопка» Ø 12 мм и с коннектором «гнездо» Ø 12 мм (3 шт.).

A_0375. Simulator IS-Micro
‍For ABP-2 and Poly-2 (ifavailable)
‍

The simulator has an 8-pin EEG connector (Micro-8M) and is connected to the corresponding socket of the ABP-2 or the Poly-2 units.

View details

A_3796-01. Lace for ABP-2 (Poly-2)(chest) – 2 pcs.

A_3796. Шнурок для АБП-2 (Поли-2) (нагрудный) – 2 шт.

A_0951-01. Arm strap for ABP-2

A_3853-01. Head strap for ABP-2 (Poly-2)– 2 pcs.

A_2348. Software "Cardfile"

The software is designed to save and structure data on conducted research in an electronic file (database), search for the necessary studies according to specified criteria, save the analysis results as attached files (protocol on the conducted research, export files to Excel and Word, screenshots with graphs and diagrams), generate reports on conducted studies.

View details

A_3889. Software functional biocontrol with biofeedback training “REHACOR”

The software provides procedures for functional biofeedback (biofeedback training) to train self-regulation skills and control of various physiological parameters. The software includes a library of training scenarios with BFB with training groups of various purposes.
It provides the possibility of creating new training scenarios and including them in the software as additional trainings.
Together with the software "REHACOR", you should purchase the Main library of training scenarios with BFB, which includes 7 groups of training scenarios and a set of necessary sensors and accessories for them. The consumer, in addition to the Main Library, can purchase the required groups of training scenarios for various purposes.

A_4029.Wireless PC adapter IB-USB

The IB-USB interface unit ensures the operation of the communication channel of the IB-USB unit with the PC of the System via the USB interface and the operation of 10 information communication channels of the wireless interface "Bluetooth 5.0" of the IB-USB unit with the Base units ABP, as well as additional modules and devices of the System, ensuring mutual synchronization of data flows from them.

Additional set of equipment

A_9878. Wireless amplifier unit Poly-2

It is used:

in the trainings of the neurofeedback;
with additional software "ENCEPHALAN- MPA" for analyzing signals through polygraphic channels together with EEG signals;
with EEG and EP studies "ENCEPHALAN-AVS" using audio-visual stimulation.

Specifications

Set of wireless amplifier unit Poly-2 includes:

A_5125. Charger Cable(Micro 8M) For Poly-2

The cable has USB-A and Micro-8M connectors and is used to connect the purchased charger to the ABP-2 base unit or additional the Poly-2 unit.

A_1150. Neutral wire (with “snap” connector Ø 12 mm andwith connector “socket” Ø 12 mm) (3pcs)

It can be used in ABP-2 and Poly-2 (ifavailable) units when they are freely placed, not fixed with a disposable ECGelectrode, and the connector socket on the module and block housings isconnected by a wire with the N electrode conductor button to remove the socketfor the N electrode to the required distance and fix the disposable ECG electrodeon the skin.

A_0951-01. Arm strap for Poly-2 (ABP-2) – 2 pcs.

A_3853-01. Head strap for ABP-2 (Poly-2)– 2 pcs.

General additional accessories

Computer equipment and additional components

A_2380. Real–time computer station (portable)

Minimum characteristics of a portable PC (no worse): Intel Core i5 processor type, 8GB RAM, 512 GB SSD, 14" display and larger, HDMI port, minimum 2 USB ports, Windows 10 and later, a mouse.It requires an integrated Iris video card or a discrete video card in the PC.Connection of one additional monitor and AR goggles is required.
‍
Warning! When purchasing, it is necessary to coordinate the parameters with the manufacturer.
‍
If the Customer wishes to choose an improved version of computer equipment, it is mandatory to inform the supplier about this and coordinate the characteristics of computer equipment with the manufacturer.

A_8585 AR goggles

They provide the perception of audiovisual information and immersion in multimedia for training with BFB on a virtual 120-inch screen.

A_5109. Kaspersky Internet Security antivirus software

Recommended for virus protection

A_4319. MS Office.

Word and Excel are required

A_2604. Portable computer carrying bag

At Customer’s choice.

A_2604. Сумка для переноски портативного компьютера.

A_0687. Additional monitor (23” and larger)

The monitor is necessary for effective work with Software functional biocontrol with biofeedback training “REHACOR” and "ENCEPHALAN-AVS".

A_4379. High–quality open-type headphone

At Customer’s choice instead of a computer speaker system

A_4379 Качественные наушники открытого типа.

A_4300. Computer acoustic system 2.1 or 3.1

Purchased at Customer’s choice for an additional monitor

A_4300. Компьютерная акустическая система.

A_5565. Digital widescreen TV

At Customer’s choice

A4 laser printer

At Customer’s choice

A_4087. Принтер лазерный ч/б формата А4.

The Basic library of training scenarios with BFB

Training groups of “REHACOR” with BFB SW, additionally supplied to the Basic library.

Add-ons that extend the functionality of the execution REHACOR-NEXT

A_1531-11 Software for objective psychological analysis and testing «EGOSCOP» and a test library

Including the following groups:

multifactorial personality questionnaires;
interpersonal relationship questionnaires;
questionnaires of motivational features;
questionnaires of mental states;
self-attitude questionnaires;
temperament questionnaires;
questionnaires of abilities and values;
psychophysiological tests;
cognitive tests;
projective tests.

The software allows you to expand the library of drawing or text projective techniques, as well as various questionnaire tests.

Additional features for the auto-documentation of the testing process and special processing expand the user's capabilities in terms of an objective assessment of test results and allow the use of calculated statistical information about physiological and pictographic reactions for additional socio-psychological and cognitive-somatic interpretation of the conducted studies.

The list of tests is provided upon request, it is possible to change the composition of tests in agreement with the Customer.

It requires:

A_4074. Pen Display – electronic tablet Wacom CINTIQ 16 type (purchased individually);
MS Office as part of the personal computer software.

More detailed

The set includes:

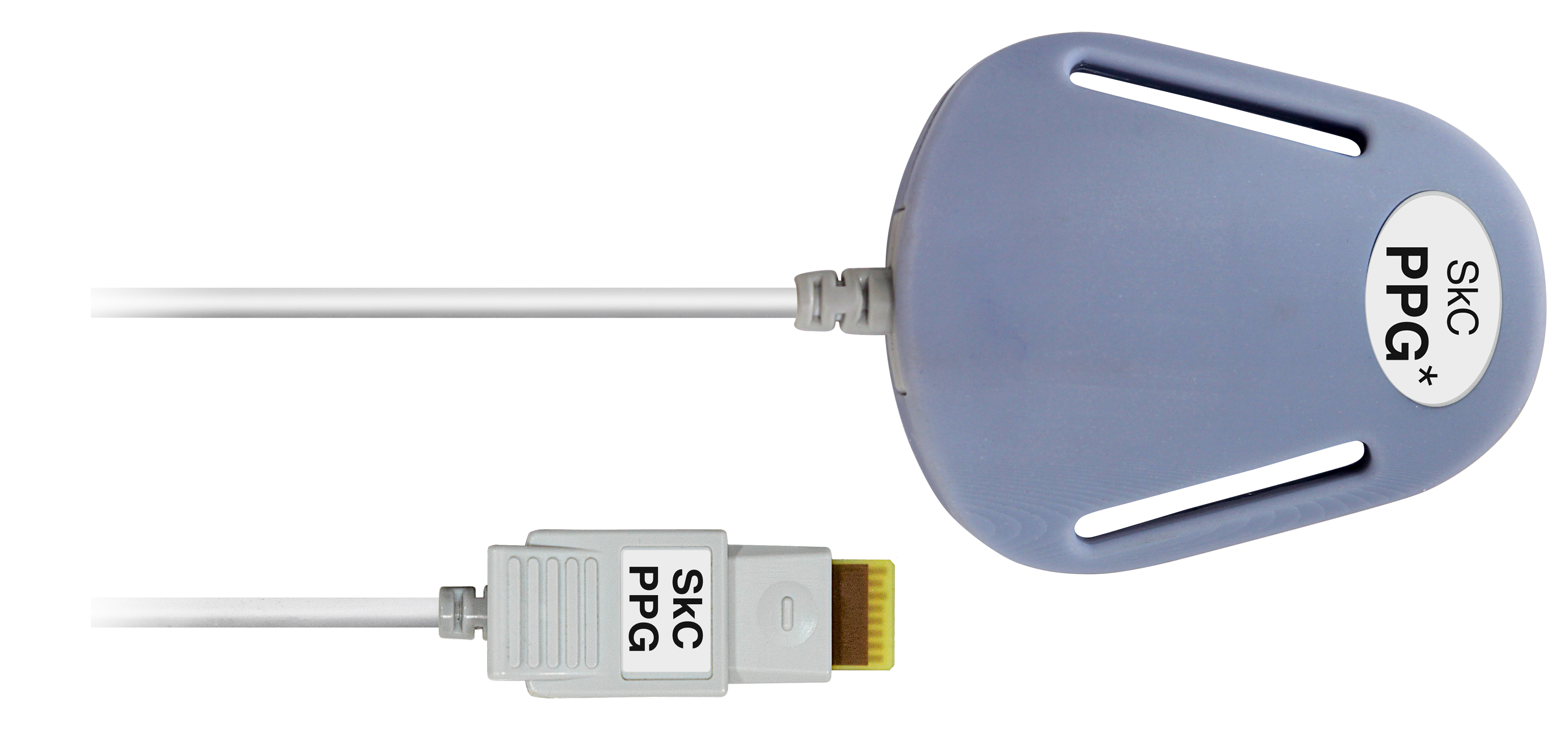

A_5570-1. SkC/ECG/PPG Sensor (Micro-8М)

to register physiological signals using the ABP-2 unitSkC, ECG, PPG signals are recorded

A_5570-1. ECG/SkC/PPG* Sensor (Micro-8M) is connected to ABP-2

A_4074. Pen Display (electronic tablet Wacom CINTIQ 16 type or an analog)

A_4074. Монитор-планшет типа Wacom CINTIQ 16 или аналог

It is a device for touch-sensitive accurate graphical input of information.Connects to a personal computer.When conducting psychophysiological research and psychological testing, it allows to:

register pictographic data characterizing the psychomotor activity of the subject;
produce synchronous auto-documentation of testing information (drawing arbitrary graphic images by the subject, writing words, numbers, etc.) with the parameters of the motor skills of the hand (pressure on the pen, the delay time before drawing graphic images and the delay time before moving to the next stage).
register the search activity of the subject when performing tests.

Attention: If you purchase it yourself, the type of device must be agreed with MEDICOM MTD Ltd.

A_6423. Oculomotor tubus and a corresponding test in the library

It is used for Critical flicker fusion and distinguishing tests (CFFF, CFDF), in order to assess the functional state of the cortical part of the visual analyzer and the central nervous system, as well as to assess the degree of inertia of mental processes and functional asymmetry.

A_6423. Тубус зрительно-моторный (подключается к порту USB) и дополнительный тест КЧРМ/КЧСМ в библиотеке «ЭГОСКОП»

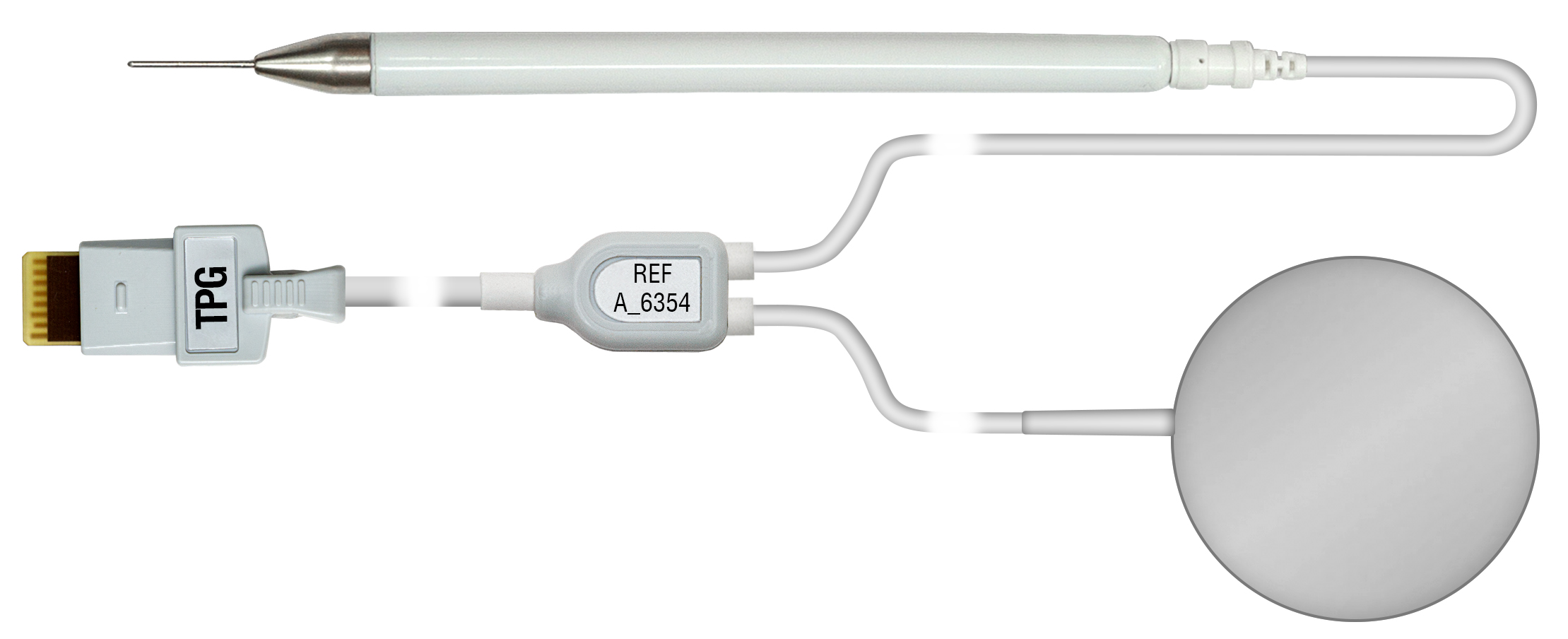

A_6354. Pad for tapping test and an additional test in the EGOSCOP library

It is used for tapping test to determine the strength and mobility of the nervous system.Allows you to register, in addition to the dynamics of the frequency of hits, also the dynamics of the hit force.

A_1964. Heart rate variability analysis «HRV»

Used for:

as a screening test for psychophysiological studies
evaluation of the characteristics of the initial vegetative tone, vegetative reactivity and vegetative support of activity;
assessment of the adequacy of physical and psycho-emotional loads in educational and production processes

It can be used both independently and as an accompanying and related to the main testing in scientific non-medical research.

More detailed

A_1964. Анализ сердечного ритма «АСР» на основе исследования вариабельности сердечного ритма

The set includes:

A_2714. Disposable ECG Electrodes (use for recording ECG, EMG, EOG, in a package of 30 pcs.)

A_2714. Электрод ЭКГ одноразовый с кнопкой (для ЭОГ, ЭМГ), набор 30 шт.

А_2229. ECG Electrodes Set (clamp EEG electrodes 3 pcs.)

For use in training instead of disposable electrodes (if it is impossible to use them) using an ECG A_8302-2 cable.

А_2229. Набор ЭКГ электродов (3 клипсы).

A_0803-4. Software "ENCEPHALAN-MPA" for the multiparametric analysis of signals via polygraphic channels with EEG signals for scientific research in psychophysiology

The software provides:

calculation and visualization of trends reflecting the cardiocycle (cycle to cycle) dynamics of indicators of the cardiovascular, vegetative and central nervous systems on a single time scale, for visual assessment of their relationship;
detailed analysis of recorded signals to assess physiological shifts in response to provoking influences in order to identify weak and compensatory links in the body's systems during psychophysiological tests;
conducting statistical and spectral analysis, constructing histograms and/or scattergrams of the distribution of indicators for specified study fragments;
formation of an automatic protocol with a formalized description and tabular data reflecting the initial state and significant changes associated with functional tests.

More detailed

A_0803. ПО «ЭНЦЕФАЛАН-СА» для анализа сигналов по полиграфическим каналам совокупно с ЭЭГ сигналами (патент РФ 2252692) для научных исследований в психофизиологии

A_0712-1. EEG and EP studies using audio-visual stimulation "ENCEPHALAN-AVS"(from the EP-studies "ENCEPHALAN-EP", the "basic" option)

SW "ENCEPHALAN-AVS" is designed to study the mechanisms of human perception and memory, emotions, attention, mental activity, with attention and memory disorders.

The main difference between an audiovisual stimulator and other types of stimulators is that AVS allows the use of stimuli with semantic content, which allows the use of ENCEPHALAN-AVS software in scientific research in cognitive psychology.

Requires:

additional monitor for presentation of video stimuli;
headphones or speakers for presentation of audio stimuli.

More detailed

A_0712. ЭЭГ и ВП исследования с использованием аудиовизуальной стимуляции «ЭНЦЕФАЛАН-АВС» (с ПО ВП-исследования «ЭНЦЕФАЛАН-ВП», вариант «базовый»)

The set includes:

A_9873. Button sensor

The sensor has two buttons on the body for marking events by the respondent, a built-in LED and a vibration module for presenting a light and vibrotactile stimulus to the respondent, as well as a built-in movement activity sensor and a Bluetooth 5.0 wireless module

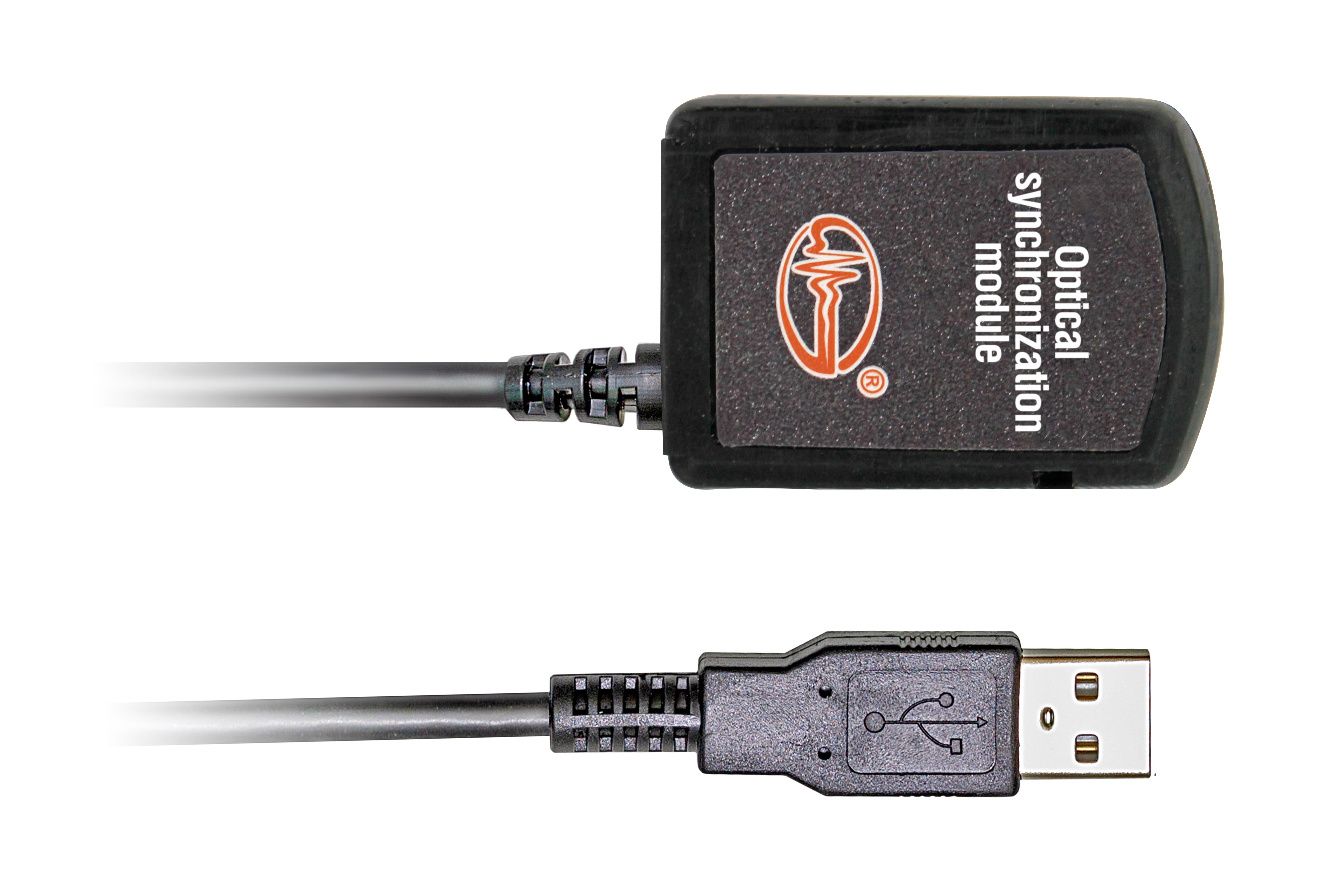

А_4833. Optical synchronization module

The module provides registration of a synchronizing video stimulus on the PC monitor screen using a built-in optical sensor and a wireless module "Bluetooth 5.0".
